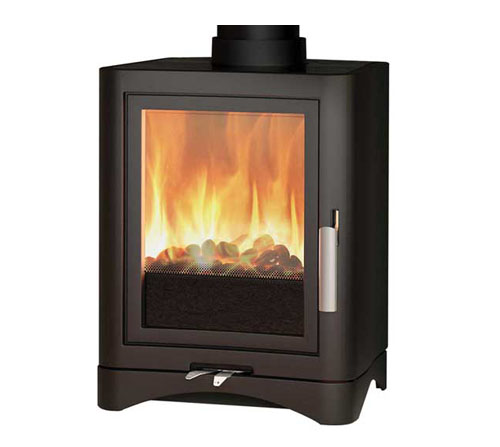

BROSELEY EVOLUTION 5kW multi-fuel defra approved stove
Striking retro modern stove with remarkable efficiency (80.5%/A+). It started out life as a wood stove and a
few years ago became multi-fuel. Defra approved for smoke control areas with a stunning
portrait picture window over 16"².
The eVolution 5 is also unusual in its construction. It has a steel inner with cast iron 'cladding' hung on the outside, hence its weight (100kg). I rate the eVolution enough to have one in my lounge and can testify it has a flame pattern like no other.
It looks remarkable with a logstore and suits freestanding locations as its curved sides can be more clearly seen. Options include the glass top in the deluxe version and it comes with a 5 year warranty.
Broseley are a British firm based in Shropshire not far from the town they take their name from and have been in the stove business since
1983.
 |
| Specification | |||||
| Width | Height | Depth | Outlet size | Max log size | Efficiency (Net) |
| 450mm (17¾") | 583mm (23") | 385mm (15¼") | 125mm (5") | 30cm (11¾") | 80.5% (wood) / 76.3% (coal) |
| Weight | Hearth required | Fuel | Air gaps required | Construction | EP rating |
| 100kg (unpackaged) / 139kg (logstore) | 12mm | multi-fuel | 300mm front hearth, 100mm (S) 50mm (R) 200mm (A), 5M flue, 12-16Pa. | steel and cast iron | A+ |
| Exterior window | Distances to combustibles | Warranty | Output | Price (inclusive of VAT) | |
| 280 x 375mm (11 x 14¾") 105cm² (16¼"²) |
Back 700mm | 5 years | 5kW nominal | £999 (including local* delivery) | |
| Side(s) 450mm | |||||
| Above 700mm | +£1199 (logstore version - 923mm high) | ||||
| Max hearth temperature 62°C / 67.6°C (logstore) | |||||
| Mean flue gas temperature 245°C (wood) / 295°C (coal) | |||||
