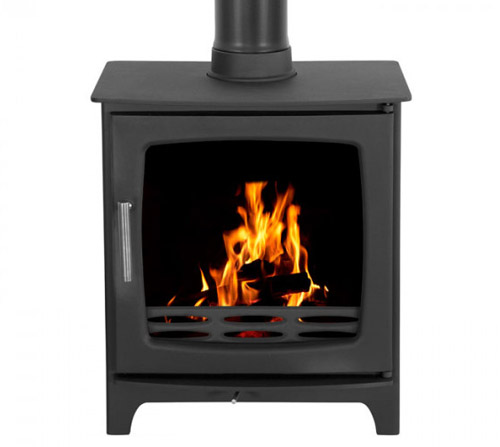

CARRON ECO REVOLUTION 5kW wood only ecodesign 2022 defra approved stove
The Carron Eco Revolution is Carron's first ecodesign stove and it is rather striking.
New for 2019 it has an enviable 82.7% efficiency and a five year warranty for under £900, a stunning picture window and an air control that is simplicity itself.
The Stove Industry Alliance believes that an ecodesign stove such as the Eco Revolution will require about 5 logs to produce 4kWh of heat over a 5 hour period.
Carron are a British firm based in Grantham, Lincolnshire with a history stretching back to the industrial revolution.
The Eco Revolution comes with a 5 year warranty.
 |
| Specification | |||||
| Width | Height | Depth | Outlet size | Max log size | Efficiency (Net) |
| 520mm (20½") | 580mm (22¾") | 355mm (14") | 125mm (5") | 30cm (11¾") | 82.7% |
| Weight | Hearth required | Fuel | Air gaps required | Construction | EP rating |
| 73kg (unpackaged) | 12mm | wood only | 150mm (S) & (R), 300mm (A), 5M flue, 12Pa | steel and cast iron | A+ |
| Exterior window | DISTANCE TO COMBUSTIBLES | Warranty | Output | Price (inclusive of VAT) | |
| 356 x 349mm (14 x 13¾") 124cm² (19¼"²) |
Rear 600mm | 5 years | 5kW nominal | £895 (including local* delivery) | |
| Side(s) 550mm | |||||
| Above 600mm | |||||
| Max hearth temperature <100°C | |||||
| Mean flue gas temperature 253°C | |||||
