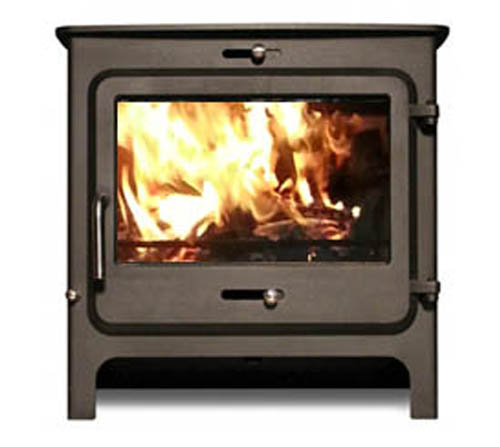

EKOL CLARITY VISION 5kW multi-fuel ecodesign 2022 defra approved stove

This is the stove that created a bit of a sensation when it was launched only a few years ago. It is possibly the widest 5kW stove on the market, taking logs up to 18" long, it is ecodesign 2022 passed and it has 82% efficiency. In effect it is a slim line version of the Clarity 12.

The sheer amount of glass (more than 15"²) with a controllable output between 2-7kW, the Clarity Vision is natively a wood only stove but can be fitted with a multi-fuel kit it operates on a 5" liner and comes with a 5 year warranty.

Ekol are a family owned stove company based in Wareham in Dorset. We've sold their stoves for years and have yet to have to do any warranty work on them, the Clarity range is one of our best sellers. Reliable, robust and efficient.

Width Height Depth Outlet size Max log size Efficiency (Net)
620mm (24½") 600mm (23½") 281mm (11") 125mm (5") 45cm (18") 82%
Weight Hearth required Fuel Air gaps required Construction EP rating
90kg (unpackaged) 12mm multi-fuel (option) 50mm all round steel and cast iron A+
Exterior window Distances to combustibles Warranty Output Price (inclusive of VAT)
406 x 241mm
(16 x 9½")

97.8cm² (15¼"²)

Back 250mm 5 years 5kW nominal
2-7kW range
£1099 (including local* delivery)
Side(s) 400mm
Max hearth temperature <100°C +£100 (tall version - 826mm high)
+£100 (multi-fuel kit)
£345 (bioethanol kit 1.5kW output)
Mean flue gas temperature 247°C
