Ekol Clarity 12 12kW ecodesign label


ekol stoves hove wood burners

EKOL CLARITY 12kW multi-fuel ecodesign 2022 defra approved stove

The big beast of the Clarity range with the ability to take logs up to 45cm (18") in length. Suitable for smoke control areas with a 5 year warranty.

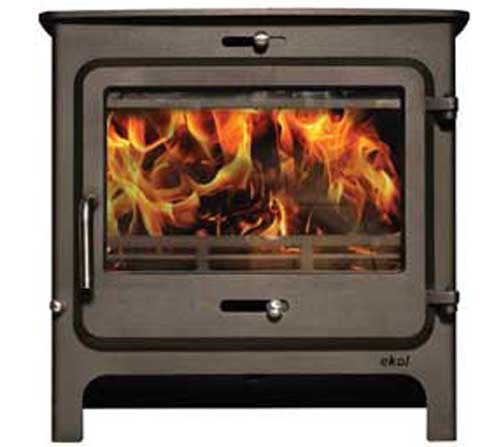

Riddling grate as standard (it acts like a poker in the fire) and three air controls to nuance the burn rate to your exact requirements. The stove is also very controllable with a 4-12kW range. Excellent airwash, available in standard (pictured) or tall versions. It can in exceptional circumstances be operated on 5" liner with special dispensation from Ekol.

The Stove Industry Alliance believes that an ecodesign stove such as the Crystal will require about 5 logs to produce 4kWh of heat over a 5 hour period.

Ekol are a family owned stove company based in Wareham in Dorset. We've sold their stoves for years and have yet to have to do any warranty work on them, the Clarity range is one of our best sellers. Reliable, robust and efficient.

Width Height Depth Outlet size Max log size Efficiency (Net)
620mm (24½") 600mm (23½") 375mm (14¾") 150mm (6")
can be operated on a 5" liner (Combustion appliances and fuel storage systems ADJ, 2010) Size of flues 2.5
45cm (18") 75.9%
Weight Hearth required Fuel Air gaps required Construction EP rating
125kg (unpackaged) 12mm multi-fuel 50mm all round steel and cast iron A
Exterior window Distances to combustibles Warranty Output Price (inclusive of VAT)
406 x 241mm
(16 x 9½")

97.8cm² (15¼"²)

Back 680mm 5 years 10.5kW nominal
5-12kW range
£1299 (including local* delivery)
Side(s) 580mm
Max hearth temperature <100°C +£100 (integrated logstore - 826mm high)
+£99 (burnished door)
Mean flue gas temperature 380°C
