Ekol Crystal 12 ecodesign multi-fuel stove at HOVE WOD BURNERS Brighton





Ekol Crystal 12 12kW ecodesign label



ekol stoves hove wood burners

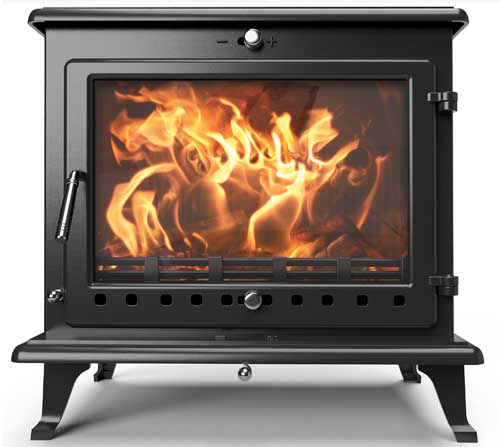

EKOL CRYSTAL 12kW multi-fuel ecodesign 2022 defra approved stove


Ekol's Crystal 12kW stove is one of the best value 12kW stoves available.

The Crystal range is all cast iron, made the way stoves have been made for decades maybe even centuries. It has the advantage that they hold their heat longer with more mass than a steel stove, it also accounts for the stove's traditional styling. The Crystal range have an excellent air wash, riddling grate and three air controls. They are natively multi-fuel.

We've fitted numerous Crystal 12 stoves over the years but the one which seems to attract most attention is upstairs on the smoking terrace at Mrs Fitzherberts pub near the Theatre Royal in Brighton. Like its sister stove the Ekol Clarity 12 it can in exceptional circumstance be operated with a 5" liner.

The Stove Industry Alliance believes that an ecodesign stove such as the Crystal will require about 5 logs to produce 4kWh of heat over a 5 hour period.

Ekol are a family owned stove company based in Wareham in Dorset. We've sold their stoves for years and have yet to have to do any warranty work on them, the Crystal range is one of our best sellers. Reliable, robust and efficient.


Specification
Width Height Depth Outlet size Max log size Efficiency (Net)
625mm (24½") 630mm (24¾") 377mm (14¾") 150mm (6")
can be operated on a 5" liner (Combustion appliances and fuel storage systems ADJ, 2010) Size of flues 2.5
45cm (18") 75.9%
Weight Hearth required Fuel Air gaps required Construction EP rating
132kg (unpackaged) 12mm multi-fuel 50mm all round all cast iron A
Exterior window Distances to combustibles Warranty Output Price (inclusive of VAT)
428 x 278mm
(16¾ x 11")

118.9cm² (18¼"²)

Back 680mm 5 years 10.5kW nominal
4-12kW range
£1099 (including local* delivery)
Side(s) 580mm
Max hearth temperature <100°C +£99 (burnished door)
Mean flue gas temperature 380°C
